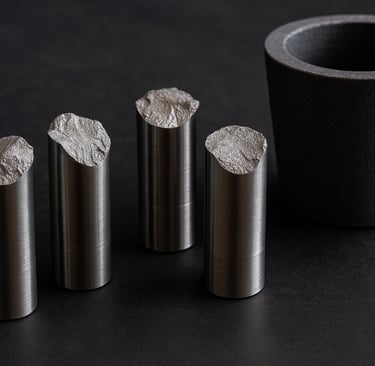

In today’s climate of rapid industrial transformation, the demand for metals that are stronger, lighter, and more sustainable is unrelenting. Success in advanced manufacturing—from automotive to aerospace to renewables—now hinges on extracting maximum performance from every ton of material. At the core of this challenge lies a deceptively simple, yet technically profound, question: how does a metal’s fatigue life change after it undergoes remelting?
Remelt operations, once considered a cost-saving recycling tactic, are now central to the material lifecycle and circular economy strategies. However, each remelt cycle rewrites a metal's microstructure and mechanical story—for better or for worse. Understanding these changes unlocks opportunities for smarter QA, improved lifespan, cost savings, and even compliance with global environmental standards.
If you’re responsible for quality assurance, process engineering, or material innovation in a competitive sector, unlocking the science of fatigue after remelt offers a distinct edge. Let’s dig into the mechanics, the metrics, and the operational best practices that define this crucial link between process window control and real-world product durability.
Table of Contents
Understanding Metal Fatigue and Remelting
Fatigue failures account for almost 90% of all metallic failures in service, according to ASM International. Unlike many other forms of fracture, metal fatigue progresses silently under repeated cyclic loading—far below the bulk tensile strength—until catastrophic failure occurs. This process is triggered by microscopic crack initiation at stress concentrators such as surface notches, inclusions, or microstructural heterogeneities. Fatigue crack growth then propagates incrementally, and once the critical length is reached, failure is sudden and complete.
Remelting describes the controlled melting and recasting of metallic scrap, off-cuts, or returns. It is a pillar of modern metallurgy, enabling both resource efficiency and alignment with sustainability mandates. In sectors like aerospace and medical devices, remelt practices are carefully engineered to recover high-value alloys while minimizing property loss. Indeed, more than 40% of steel and 70% of aluminum produced globally derive, in part, from remelted material, highlighting its significance for the circular economy.
However, each remelt process is more than just a “reset”—it modifies the internal chemistry, grain architecture, and defect landscape of the metal. The critical question is how these transformations impact fatigue resistance, especially as end-use constraints become more severe and regulatory requirements tighten.
Why does this matter to today’s manufacturer?
Consider critical load-bearing components in turbines, bridges, or medical implants—failure under fatigue is not just costly, but often catastrophic. Recognizing how repeated remelting cycles unwind or reinforce metallurgical integrity is essential for setting specifications, QA protocols, and sustainability pathways.
The Remelting Process: Fundamentals and Modern Practices
Remelting Techniques in Industry
To appreciate how remelt influences fatigue life, it’s important to distinguish between the primary industrial methods, each with its nuanced impact on quality, microstructure, and sustainability:
Vacuum Arc Remelting (VAR):
Entity: Used predominantly for superalloys and titanium intended for jet engines, medical implants, and nuclear components.
Attributes: Offers supreme control of impurity levels (hydrogen, oxygen, nitrogen), resulting in fine microstructures and minimal segregation.
Electroslag Remelting (ESR):
Entity: Favored for high-grade steels and nickel-based alloys.
Attributes: The molten slag layer acts as a powerful filter, trapping inclusions and refining the final ingot. ESR improves both toughness and fatigue resistance by minimizing the inclusion size and distribution.
Induction Remelting:
Entity: Often the go-to for bulk recycling of steel or aluminum.
Attributes: Rapid, energy-efficient, but less effective at impurity removal compared to VAR or ESR, and thus typically limited to low-stress applications.
The Importance of Process Window Control
A “process window” encompasses all key variables—melting temperature, hold times, cooling rates, shield gas composition, and alloy chemistry. Advanced digital controls and sensors now allow for real-time monitoring and control of these parameters, drastically reducing out-of-spec batches.
Case in Point: In VAR of aerospace superalloys, even a 2°C deviation in melting rate can influence porosity levels resulting in a 15% decrease in measured fatigue strength over a million cycles—a critical loss for jet turbine applications.
How Remelt Affects Microstructure and Fatigue Life
Microstructural Evolution
The mechanical properties of metals, and specifically their fatigue resistance, are directly influenced by the intricate arrangement of grains, phases, and defects within their microstructure. Remelt processes catalyze several key transformations:
Grain Structure Refinement: Controlled cooling post-remelt encourages uniform, equiaxed grains, which block crack propagation and enhance fatigue resistance. In specialized ESR or VAR processes, grains can be tailored to optimize high-cycle fatigue (HCF) and low-cycle fatigue (LCF) performance.
Dendritic and Columnar Microstructures: If solidification is too rapid (as seen in poorly regulated induction remelting), elongated or dendritic grains may persist. These microstructures are susceptible to localized stress concentrations and early fatigue crack initiation.
Inclusion and Defect Management: Well-controlled remelting processes facilitate flotation and removal of inclusions (nonmetallic particles like oxides or sulfides). However, poorly sorted scrap or oxygen ingress can introduce new inclusions, directly undermining fatigue life.
Porosity and Voids: Gas absorption (hydrogen, nitrogen, or oxygen) is a critical risk during remelting, with resulting porosity offering easy pathways for fatigue cracks.
Chemical Composition Control
Precision in alloy chemistry is the cornerstone of predictable fatigue performance. Losses of critical elements—such as carbon in steel or chromium in stainless alloys—during remelt can result in weakened phase boundaries and susceptibility to crack growth under cycling. Additionally, tramp elements from scrap, like phosphorus or sulfur, have an outsized negative impact, even at ppm (parts per million) levels.
Statistics: Research in the Journal of Materials Science & Engineering indicates that steels remelted from poor-quality scrap containing just 0.015% additional sulfur exhibit a 25% reduction in fatigue life compared to ingots with stricter sulfur controls.
Impact on Fatigue Life
Factors Intensified by Remelt:
Inclusion Content and Size: Each remelt cycle is an opportunity to either eliminate existing inclusions or trap new ones, impacting crack initiation thresholds.
Surface and Subsurface Defects: Advanced fractography studies show fatigue cracks preferentially nucleate at corners, voids, or interrupted grain boundaries left by entrapped gases or contaminants introduced during remelt.
Residual Stress Distortion: The repeated thermal cycling inherent in remelt can either relieve or introduce new stresses—these internal stress fields alter the energy landscape for crack formation.
Case Studies:
Aerospace Alloys: Research from Rolls-Royce on triple VAR-processed turbine discs documented a 40% improvement in LCF fatigue life when remelting was performed under tightly controlled vacuum and thermal gradients, compared to single-pass remelt.
Automotive Steels: Ford Motor Company published data showing that poor control of remelt scrap can introduce manganese sulfide stringers, reducing S–N curve endurance limits by up to 30%.
Key Tests and Parameters: Defining Fatigue Performance
4) Fatigue Testing—from S–N Curves to Gigacycles If remelting rewrites the metal’s internal story, fatigue testing is how we read it back, line by line. The first choice is philosophical as much as technical: are we interrogating a component that lives most of its life well below yield, or one that habitually dips into plasticity during start–stop cycles and thermal swings? High-cycle fatigue (HCF) data—traditionally captured as stress (S) versus cycles to failure (N)—remains the language of rotating shafts, springs, and thin sections that operate in the elastic regime. Here, the scatter in S–N data after a remelt often grows, not because the base strength has collapsed, but because the defect population has become more heterogeneous. A handful of pores in the 50–100 μm range or a small cluster of elongated inclusions can flatten the S–N slope by several percentage points and push run-outs down from 10^7 to 10^6 cycles. That is why, in HCF testing of remelted heats, credible results demand tight control of surface finish, a fixed stress ratio R that mirrors service (for example, R = −1 for fully reversed bending or R = 0–0.5 for tension–tension), and fractography on every failed specimen to determine whether cracks originated at the surface, at a machining imprint, or from a subsurface pore. Where machinery breathes in large strain amplitudes—think powertrain launches, turbine start-ups, or thermally cycled fixtures—low-cycle fatigue (LCF) is the correct lens. Strain-controlled tests reveal how life collapses once local plasticity sets in, and the Coffin–Manson relationship, combined with an elastic Basquin term, typically describes life over two to three decades of cycles. After remelt, the features that matter most are segregation bands and porosity fields that steer plastic strain into narrow corridors. Digital image correlation (DIC) or replica methods make these corridors visible: you literally watch strain localize along a banded region or around a pore constellation several millimeters before a crack appears. When remelt has increased inclusion spacing and reduced pore size, the plastic strain field smears out and life recovers; when it has not, you see early crack initiation even when nominal strains look benign. Damage-tolerant engineers will argue that crack growth rate, rather than initiation, sets inspection intervals and safe-life boundaries. They are often right. Fatigue crack growth (FCG) testing translates remelt quality into the parameters we actually design and maintain against: the near-threshold stress-intensity range ΔK_th, and the Paris-law constants C and m that describe da/dN through the mid-regime. Cleaner remelts usually nudge ΔK_th upward and flatten m, buying slower growth per cycle; dirty heats do the opposite. Small-crack behavior deserves special mention: remelt-generated defects frequently seed cracks that grow faster than classical long-crack models predict, narrowing the margin between inspection and failure unless this “short-crack anomaly” is explicitly captured in the data. A final tier, very-high-cycle fatigue (VHCF), matters for components that hum along for years at low stress amplitudes: thin compressor blisks, micro-gears, instrument springs. Ultrasonic rigs running near 20 kHz can explore life near 10^9 cycles in practical timescales, but they surface a different remelt fingerprint. Failures often initiate subsurface at a pore or inclusion, producing classic “fish-eye” features encircling a fine granular area. That pattern tells you the defect population has become life-limiting even when surfaces are immaculate. When the pore size distribution’s 99th percentile drops below roughly 80–100 μm for many aluminum cast alloys, the fish-eye frequency falls sharply and the endurance plateau shifts to longer lives; when it does not, the VHCF tail refuses to improve despite every other variable looking clean on paper.
QA Strategies: Ensuring Quality After Remelt
5) Advanced QA—Seeing the Microstructure You’re Actually Shipping Quality after remelt cannot be inferred solely from chemistry and tensile coupons. Fatigue is exquisitely sensitive to the three-dimensional defect field, to the grain architecture that channels slip, and to the residual stresses left behind by machining and heat. The plants that keep fatigue life consistent treat micro-CT, EBSD, X-ray diffraction, and hydrogen/gas analytics as production tools, not research luxuries. Micro-computed tomography (μCT) changes the conversation because it quantifies the thing fatigue “feels” first: pore size, shape, volume fraction, and spacing. Once you can report a pore size distribution and call out the P99 or P99.9 value for each heat, you can finally correlate a specific remelt practice to a shift in S–N slope or an uptick in subsurface crack origins. The voxel size matters; it should be comfortably below the pore size you intend to control. Plants aiming to cap pore P99 near 80 μm often run reconstructions at 10–20 μm voxels for screening coupons. Inclusion intelligence needs the same uplift. Traditional counts are blunt; automated image analysis tied to SEM-EDS chemistry and shape factor distinguishes benign oxide nubs from elongated MnS stringers or complex entrained slag, while spatial statistics reveal clustering. Clusters are particularly toxic for HCF because they shorten the effective distance to the next initiation site, loading the dice toward early failure even if no single inclusion is “too big.” Texture and residual stress are the next invisible actors. EBSD maps expose columnar growth, banding, and misorientation gradients that nudge cracks along preferred paths; XRD maps highlight where machining, grinding, or shot-peening has left tensile or compressive fields. Post-remelt LCF lives routinely jump when a shallow tensile skin is replaced by a compressive layer a few hundred micrometers deep; HCF lives rise as surface roughness and tensile stress are driven down together. None of this sticks unless gas control is real. Carrier-gas hot extraction for hydrogen in aluminum, and oxygen/nitrogen in steels and nickel alloys, turns “good practice” into measurable acceptance bands. Inline hydrogen probes during rotary degassing, logged against time to a setpoint, predict μCT porosity weeks before the first fatigue specimen ever breaks. The connecting tissue is data discipline. Every specimen and part should carry a digital thread—heat ID, scrap blend, melt parameters, filter and degassing IDs, cooling profile, surface finish recipe, peening lot, and the measured microstructure and stress metrics. When pore P99, inclusion area fraction, and grain size are treated as control-to-quality characteristics with capability targets rather than as pretty micrographs, fatigue becomes an output you can forecast rather than a coin toss you discover after shipment.
Yard-to-Melt: Practical Implications for Industry
6) Yard-to-Melt—Where Fatigue Success Actually Starts Most fatigue problems blamed on “casting” or “the alloy” were born in the yard, hours before the furnace door opened. Remelt is uniquely sensitive to the cleanliness and consistency of the charge. Moisture isn’t just a nuisance; it is hydrogen waiting to be absorbed, and hydrogen becomes porosity during solidification. Oils and paints don’t merely smoke; they raise slag loads and introduce films that pepper the bath with non-metallics. When acceptance starts with positive material identification at intake—LIBS or XRF to keep phosphorus, sulfur, lead, bismuth, and tin within tight bands—and continues with mandatory bake-outs and de-oiling, the downstream gas and inclusion burden drops immediately. Charge geometry matters too. Lightweight “sail” pieces dumped into a bath churn turbulence, entrain oxides, and create re-oxidation films that μCT will faithfully immortalize later. Briquetting offcuts into uniform, dense charges and pre-blending recipe lots smooths the melt profile and reduces the temptation to “rescue” chemistry with last-minute dumps that spike composition and gas pickup. Flux and slag practice should be treated as controllable unit operations, not art: viscosity, superheat, and residence time govern whether the slag actually captures inclusions or simply rides along. In aluminum, rotary degassing to a verified hydrogen setpoint correlates almost linearly with pore statistics; in steels and nickel alloys, consistent slag chemistry and low-turbulence pouring do the same for inclusion and film defects. Solidification is the other half of the yard’s responsibility because gating and mold practice decide whether grains emerge equiaxed and forgiving or columnar and brittle. Low-turbulence gating, ceramic foam filters sized to the flow, controlled superheat, and mold preheats that avoid steep thermal gradients collectively favor equiaxed growth and suppress segregation bands. Suppliers who document these steps—charge photos, degassing curves, filter IDs, pour videos, sealing—remove ambiguity when a fatigue anomaly appears months later. When contracts include the right to witness melts, to reject heats that exceed hydrogen or inclusion caps, and to downgrade questionable batches to non-critical SKUs rather than ship silently, the whole chain behaves as if fatigue life were an audited specification—because it is.
Optimizing the Process Window: Best Practices
7) Process Window Optimization—Making Fatigue a Controlled Output The fastest way to turn remelt into a competitive advantage is to treat the furnace, filtration, degassing, cooling, and surface finishing as one coupled system and then prove, with data, how each knob moves fatigue life. That is what a small, well-designed experiment does. Vary superheat, hold time, degassing duration or rate, filter grade, cooling rate, and cleanliness class across a compact design of experiments, and measure outcomes that speak fatigue’s language: pore P99 from μCT, inclusion area fraction and clustering, near-threshold crack growth ΔK_th, Paris-regime slope m, S–N intercept and slope, and LCF life at a representative strain amplitude. The product of that work is a set of transfer functions—simple predictive relationships that let an engineer ask, “If we raise superheat by 10 °C but double degassing time and move one filter grade up, what happens to pore P99 and our HCF slope?” With those answers in hand, you can operate the melt in a region where fatigue is robust to small disturbances. Closed-loop control cements the gains. Inline spectrographs keep chemistry inside narrow corridors, hydrogen probes tell you when to stop degassing rather than guessing, optical monitoring of slag films warns when inclusion indices creep up, and thermal imaging on the pour stream exposes turbulence that reintroduces defects. Each sensor feeds explicit actions: extend degassing if hydrogen rises, replace filters or tune flux if slag indices climb, adjust pour height or venting if stream signatures worsen. Downstream, mechanical surface treatments like shot-peening or deep rolling can turn marginal HCF performance into reliable endurance by embedding compressive stress at the surface. But even here, verification matters: the depth and magnitude of that compressive layer should be confirmed by XRD or incremental removal, not assumed from an Almen arc height alone, and any subsequent stress relief must be selected to stabilize microstructure without erasing the very layer you paid to create. The entire effort is captured in what many plants now call a Digital Materials Card: a per-heat dossier that records chemistry; hydrogen, oxygen, and nitrogen levels; μCT pore statistics; inclusion metrics; EBSD grain data; residual stress maps; surface finish and peening identifiers; and the measured fatigue deltas versus target. When those cards travel with lots into warranty and fleet analytics, reliability decisions stop leaning on handbook values and start reflecting the behavior of the actual metal in the actual parts you shipped.
Conclusion: The Future of Remelt and Fatigue Engineering
8) Future Trends—Where Remelt Fatigue Engineering Is Headed The next edge in remelt fatigue will come from combining better physics with better inference. On the melt side, hybrid vacuum and clean-melt routes, improved rotary degassing, smarter flux chemistries, and induction designs that reduce re-oxidation will allow recycled content to climb without turning porosity and inclusions into tax. On the sensing side, surrogate measures for microstructure—ultrasonic or electromagnetic signatures trained to predict grain size, misorientation spread, or even texture—will move information earlier in the process, turning EBSD-like awareness into inline feedback. Plants are also beginning to deploy small inspection robots that apply replicas or DIC markers to in-service parts during scheduled pauses, catching pre-crack behavior rather than waiting for a detectable flaw. Equally important, design practice is shifting from assuming perfect material blocks to simulating statistically realistic defect fields. When finite-element models are seeded with pore size and spacing drawn from μCT statistics and when crack growth analyses use ΔK_th and Paris m measured from the same heat that fed production, inspection intervals become rooted in the true distribution of life, not in a conservative guess. That shift will be accelerated by data-driven models trained to map melt signatures—chemistry, gas content, μCT metrics, sludge/slag indices—directly to fatigue predictors. Active learning will direct the next small experiment toward the parameter that most reduces uncertainty in life prediction, cutting months from process development. Finally, procurement and liability will follow the physics. Purchase specifications that today fix chemistry and tensile minima will increasingly set defect caps for pore P99 and inclusion P99.9, residual stress bands for critical surfaces, and evidence requirements for degassing and filtration. Warranties will reference the Digital Materials Card by ID. In that world, remelting stops being a sustainability concession and becomes a lever: a factory-wide method for manufacturing predictable fatigue life from recycled inputs.
Your First 30 Days—A Practical Rollout (Expanded)
Days 1–5: Visibility Start μCT sampling (1 coupon per heat) and set an initial pore P99 cap.
Add XRD maps at two hot-spots per geometry; document baseline residual stress.
Enforce LIBS/XRF at intake plus moisture bake-outs; segregate a “critical fatigue” scrap stream.
Days 6–10: Control the bath Make hydrogen ppm a hard gate on Al; add rotary degassing verification curves to batch records.
For steels/Ni, lock slag practice and superheat windows; record filter grades and ΔP across filters.
Days 11–15: Prove the knobs Run a 3-factor DOE (superheat, degassing time, filter grade).
Measure μCT pore P99, inclusion metrics, and a single-level S–N screen to see directionality quickly.
Days 16–20: Harden the surface Introduce shot-peening/deep-rolling on the top fatigue driver; verify compressive depth with layered XRD.
Standardize machining + isotropic superfinish for HCF parts; add eddy current for near-surface anomalies.
Days 21–25: Codify the data Launch the Digital Materials Card schema and link it to lot travelers.
Put SPC on pore P99, inclusion fraction, grain size; create stop-the-line triggers.
Days 26–30: Lock suppliers and specs Issue supplier clause pack: proof-of-process media, gas/inclusion caps, right-to-witness, right-to-reject or downgrade.
Hold a post-mortem on the DOE; publish updated process window and a 90-day plan for capability growth.
Closing note
Treat fatigue life as an engineered output, not a surprise. When you can measure (μCT, EBSD, XRD), predict (DOE → transfer functions), and control (closed-loop melt and finish), remelting becomes a competitive advantage—allowing higher recycled content without surrendering durability.
