Metal Science Deep Dive: Friction Stir Welding with Recycled Plate

1. Introduction & Why This Matters

Friction stir welding (FSW) is emerging as the most dependable way to join recycled plate without inviting the defects that often accompany fusion welding. Because FSW is solid-state (no melting), it sidesteps porosity and solidification cracking—issues that are amplified when oxide films or composition scatter are present in recycled inputs. At the same time, recycled aluminium delivers a decisive sustainability edge: industry data show ~95% lower energy demand than primary metal, with similar reductions in greenhouse-gas emissions—making FSW on recycled plate a direct lever for Scope-3 progress. aluminum.org+4TWI Global+4TWI Global+4

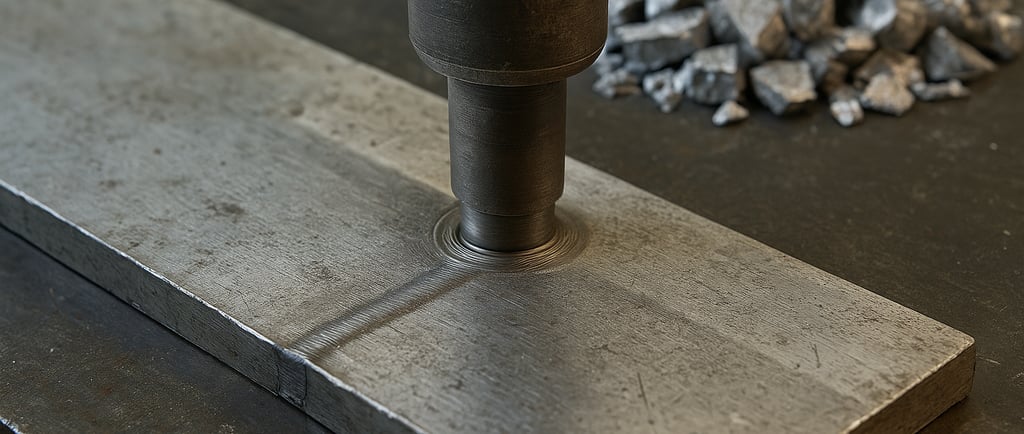

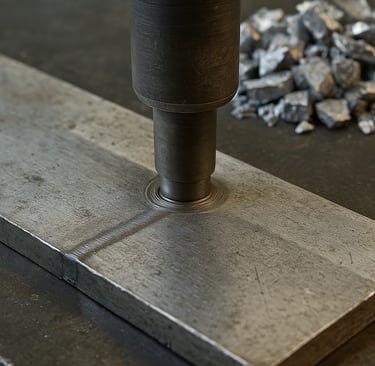

2. What FSW Is—and Why It Suits Recycled Plate

FSW uses a rotating, non-consumable tool (shoulder + pin) to plasticize and forge the joint below the melting point. The absence of a liquid pool avoids shrinkage and microsegregation, enabling consistently fine, recrystallized grains and low distortion—key reasons well-made FSW joints often surpass comparable fusion welds in fatigue and toughness. These characteristics are especially valuable with recycled plate, where oxide films must be disrupted and consolidated mechanically rather than melted around. TWI Global+1

3. How the Process Works (The Microstructural Foundation)

As the tool plunges and traverses, it generates friction/deformation heat and intense stirring. The weld cross-section exhibits three characteristic regions:

Stir zone (nugget): ultrafine, equiaxed grains via dynamic recrystallization

Thermo-mechanically affected zone (TMAZ): deformed but not fully recrystallized

Heat-affected zone (HAZ): thermally cycled, no plastic flow

This zonal structure underpins FSW's mechanical performance and guides where you'll focus QA and parameter control. TWI Global+1

4. Design & Material Readiness (Before You Press "Cycle Start")

Joint design & thickness envelope.

Butt and lap joints across wide thickness ranges are feasible when tool geometry (shoulder diameter, pin length/profile) matches section depth; because FSW is filler-free, fit-up quality matters more than in many fusion processes. TWI Global

Surface preparation & cleanliness.

Recycled plate may carry persistent oxides or shop contamination. Machine or wire-brush faying edges, solvent-degrease, and clamp hard; better contact reduces joint-line remnants and volumetric flaws. TWI Global

Tooling for oxide disruption.

Shoulder features (scrolls, flats) and pin profiles (threaded, fluted, triflute, tapered) intensify stirring to break oxides without overheating—crucial for recycled inputs. TWI Global

Procedure & personnel qualification.

Base your documentation on ISO 25239: vocabulary (Part 1), specification & qualification of procedures (Part 4), and quality & inspection requirements (Part 5). For aerospace programs, AWS D17.3/D17.3M adds sector-specific design, procedure, and inspection criteria. Iteh Standards+1 AluStir - Stephan Kallee+1

5. Building a Stable Process Window (Heat, Flow, Consolidation)

Think of the "good weld" region as a window bounded by insufficient plastic flow on the cold side and property loss/flash on the hot side:

Heat input balance.

Raise heat by increasing rotation or decreasing travel; do the opposite to cool. Target "just-enough" softening for full stirring with firm shoulder forging—especially important to fracture oxide films and consolidate recycled interfaces. TWI Global

Consolidation & forging pressure.

Too little plunge/tilt or overly cold conditions can leave voids/tunnels. Inadequate oxide breakup yields planar joint-line remnants (kissing bonds) that can be mechanically weak yet visually unobvious; mitigate via tight fit-up, sufficient plunge/tilt, and more aggressive stirring geometry. TWI Global+1

Fixturing & backing.

Minor flatness/thickness scatter is common in recycled plate. Robust backing and down-force control keep the interface intimate through the thermal cycle, reducing gap-induced volumetric defects. TWI Global

6. QA Foundations You'll Build On Later

Your quality plan should pair standards-based acceptance with inspection that actually "sees" FSW morphologies:

Acceptance framework.

ISO 25239-5 sets formal quality and inspection requirements for aluminium FSW (imperfection catalogue, acceptance levels) and cross-references UT methods—use it to structure your production control plan. ISO

NDT that fits the weld shape.

Phased-array ultrasonic testing (PAUT) is widely adopted for FSW panels and extrusions because it can sweep the full weld volume and detect both volumetric and planar indications (voids, tunnels, kissing bonds) efficiently. Complement with macro-etch/metallography during procedure qualification. Evident Scientific+2NDT+2

With the fundamentals in place—what FSW is, why it suits recycled plate, how to design and tune the process, and how to verify it—the next step is to follow the material from yard to melt to plate to finished weld, showing exactly how upstream scrap logistics, melt practice, rolling, and homogenization govern weldability, cost, and carbon outcomes downstream. TWI Global

6. Yard-to-Melt: From Scrap Recovery to Finished Weld

The journey from scrap metal recovery to a high-performance finished weld involves a tightly integrated value chain—one that's especially demanding when using recycled plate stock. Understanding this full "yard-to-melt" workflow is vital for manufacturers seeking to close the loop and maximize product lifecycle sustainability.

Scrap Collection and Sorting

The process begins with scrap collection. Here, industrial facilities prioritize clean, single-alloy streams to reduce contamination—an area where Industry 4.0 technologies like AI-powered sensors and automated sorting are becoming game changers. For example, companies like Novelis and Hydro have invested in advanced spectroscopic scanners to separate aluminum alloys, ensuring more predictable quality in recycled feedstock.

Entity Focus: Material Consistency

- Entity: Scrap Metal

- Attributes: Cleanliness, alloy type, contamination level

- Value: Higher sorted purity enhances weldability

Melting and Refining

Once sorted, scrap undergoes melting and refining. Melting facilities use either induction or gas furnaces, and incorporate degassing and fluxing processes to minimize oxide formation and entrapped gases—critical for FSW success, as oxides and porosity can undermine joint integrity.

Recent advancements in flux chemistry and rotary degassing (such as the use of argon/nitrogen gas sparging) have reduced unwanted inclusions by over 60% compared to traditional practices, as reported in the Journal of Materials Processing Technology (2023).

Rolling and Homogenization

After melting, the refined material is cast into slabs and rolled into plate. Homogenization heat treatments follow, diffusing solute elements and stabilizing microstructure before the plate is finally machined or sheared to size. Companies with in-line grain mapping (e.g., using electron backscatter diffraction) can rapidly assess texture and homogeneity, shortening cycle times while raising quality.

From Plate to Weld

Recycled plate then enters the FSW process—where all the upstream QA measures translate into lower defect rates and greater performance. The journey illustrates a connected value chain: what happens in the yard and foundry directly impacts weldability and end-use performance.

Case Study: Aerospace-Grade Aluminum

A major aerospace OEM recently piloted recycled plate FSW in cargo door structures. Their rigorous QA tracked the material from scrap lot to finished weld, ultimately demonstrating equivalent fatigue life to virgin counterparts with a 22% reduction in embodied carbon.

7. Industrial Technology Implications and Future Outlook

The continued adoption of friction stir welding with recycled plate is fundamentally transforming industrial manufacturing—delivering environmental, economic, and technical advantages at scale.

Key Implications

1. Environmental Impact and ESG Compliance

As global corporations face pressure from ESG (Environmental, Social, and Governance) standards, using FSW with recycled plate helps organizations tangibly lower their Scope 3 emissions. According to a 2022 World Economic Forum report, manufacturers utilizing recycled aluminum can cut lifecycle emissions by up to 80%, earning green certifications and improving stakeholder relations.

2. Process Automation and Digital QA

Smart manufacturing systems now leverage machine learning (ML) and industrial IoT sensors to monitor FSW in real time, predicting defects and optimizing conditions for recycled substrates. For example, Siemens' Sinumerik CNC platform feeds data from thermal cameras and force sensors directly into process control loops, significantly reducing human error and improving throughput.

3. Cost and Supply Chain Security

With recycled plate welds achieving near-virgin performance, manufacturers become less dependent on volatile primary metal markets. The financial risk mitigation and supply resilience factors have driven sectors from automotive (e.g., Ford's F-150 using recycled aluminum bodies) to rail transit (e.g., Hitachi's train carriages) to scale up their recycling and FSW investments.

Future Trends

a. Broader Alloy Adoption

Today, most FSW with recycled materials leverages aluminum alloys, but research is rapidly advancing into magnesium, zinc, and even high-strength steels. The U.S. Department of Energy's 2024 announcement funded programs aimed at optimizing process windows for recycled magnesium FSW, seeking greater CO2 reduction in the automotive sector.

b. In-Process Quality Sensing

Emergent acoustic emission and infrared thermography tools are being embedded into FSW heads, providing weld integrity feedback on the fly—marking the path toward lights-out, "self-driving" welding cells for recycled substrates.

c. Digital Twin Integration

The merging of digital twin simulations with FSW process control allows manufacturers to model defect formation in real time, adaptively tuning parameters based on the recycled plate's real-world composition. Companies like Dassault Systèmes have pioneered such virtual modeling, further closing the feedback loop.

8. Conclusion

Friction stir welding with recycled plate exemplifies the synthesis of advanced metal science, sustainability, and digital transformation. Its solid-state process tolerates the inevitable impurities and grain variations of recycled feedstock, unlocking superior mechanical properties while slashing both energy consumption and manufacturing costs.

By implementing best practices across the yard-to-melt continuum, from rigorous material sorting and advanced metallurgical refining to data-driven FSW parameter optimization, organizations are not only meeting today's ESG and profitability targets—they're future-proofing their operations against resource volatility and regulatory pressure.

The era of "waste as a resource" is here, and friction stir welding stands at the nexus of this industrial renaissance. Manufacturers who invest in these technologies now position themselves as leaders in the next generation of sustainable, high-performance manufacturing.
